| Main functions | |||||||||
ComePut the wet soil sample into a pressure membrane, and apply a certain pressure to press out the moisture retained in the soil under low pressure to determine the soil water retention characteristics ComeBy analyzing the sample under several different pressures, the relationship between soil moisture content and pressure can be determined ComeDifferent types of pressure membrane instruments are used to analyze soil samples of different sizes and quantities, and soil samples can be analyzed under different pressure ranges. ComeAll pressure diaphragms operate at adjustable pressure sources | |||||||||
| Application areas | |||||||||
ComeDetermination of soil moisture characteristic curve and its hysteresis ComeWater-saving irrigation ComeEfficient fertilization technology ComeIndirect test of soil water potential ComeResearch on water retention in forest land | |||||||||
| Main technical parameters | |||||||||

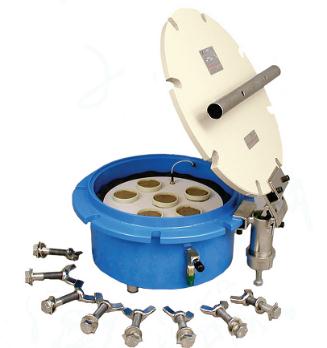

| 1600Type Pressure Plate Extractor |  | ||||||||
ComeDetermination range: 0-5 Bar ComePressure vessel depth: 22 cm ComeInner diameter: 30 cm ComeNumber of pressure plates: Place up to 4 porcelain plates at a time, and analyze approximately 48 soil samples with a diameter of 5.7 cm at the same time. | |||||||||
| 1500F2Model 15 bar pressure plate extractor |  | ||||||||
ComeDetermination range: 0-15 Bar ComePressure vessel depth: 10 cm ComeInner diameter: 30 cm ComeNumber of pressure plates: Place up to 4 porcelain plates at a time, allowing 48 soil samples of about 1cm height, 24 of 3cm, and 12 of 6cm | |||||||||
| 100 peoplePressure membrane extractor |  | ||||||||
ComeDetermination range: 0-100 Bar ComePressure vessel depth: 5 cm ComeInner diameter: 25 cm | |||||||||
| TempePressure chamber——Model 1400 |  | ||||||||
ComeDetermination range: 0-1 Bar ComeCylindrical diameter: 5.7 cm ComeCeramic plate diameter: 5.7 cm ComeCylindrical cylinder material: brass ComeConnecting pipe material: neoprene pipe (connecting external pressure source) | |||||||||
Accessories and configuration plans | |||||||||
 | |||||||||

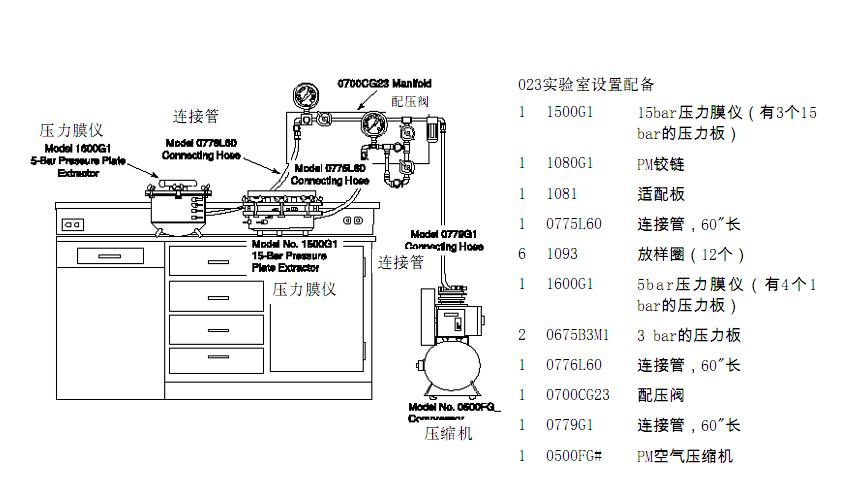

| Standard 023LAB recommended configuration solution | |||||||||
 | |||||||||
| Origin:Soilmoisture Equipment Corp | |||||||||
