| Main functions |  | ||||||||
| Macview-Greenhouse GA is a multi-gas detector with high sensitivity, especially suitable for greenhouse C2H4,no, no2, co, co2Long-term accurate monitoring of harmful gases.Gas concentrations at ppb level can be detected to help growers consciously gain insight into the amount of harmful gases around crops and estimate the acceptable accumulation concentration and exposure time of crops.It can also help users understand the relationship between greenhouse gas conditions and existing equipment and facilities, as well as adjust greenhouse control according to the current gas status and guide greenhouse agricultural production. | |||||||||
| Measurement parameters | |||||||||
C2H4,no, no2, co, co2Gas concentration | |||||||||
Application areas | |||||||||
Used in the monitoring fields of agricultural production, ecology, biology, etc.Especially suitable for monitoring, regulation and control of various important gases in greenhouses. | |||||||||
| Features |  | ||||||||
1. Connect to the greenhouse control system Macview-Greenhouse GA can be integrated with greenhouse control systems in a variety of ways to achieve timely data feedback and adjust control solutions. The connection methods are: 1) analog output (5); 2) digital interface (RS485); 3) remote communication (Internet or database). 2.WUR test testThe equipment was tested by the PPO Flower Bulb Department and the Agricultural Technology Food Science Department (Post-harvest) Department of WUR (Wagening University).The MACView-Greenhouse GA was compared with gas chromatography, and the instrument was more accurate than the minimum detection limit of GC gas chromatography they currently use (>10 ppb).WUR is also looking for excellent ppb-level equipment to conduct practical research in the agricultural industry, and has proven that this product can fully meet the monitoring needs of high-temperature and high-humidity greenhouse environments. | |||||||||

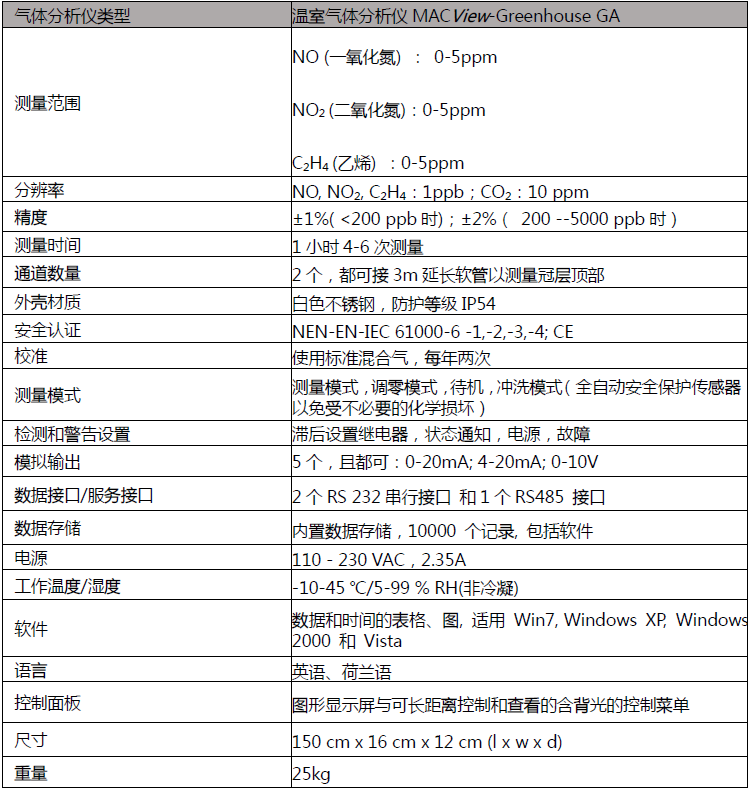

| Main technical parameters | |||||||||
 | |||||||||
| Purchase Guide | |||||||||
1. Macview-Greenhouse GA Host: Includes 5 analog input interfaces, which can connect to the greenhouse control system through RS485 and the Internet. 2.Sensor: C2H4,no, no2, co, co2Optional, up to 5. | |||||||||
| Origin:Netherlands EMS | |||||||||
