Main functions
Chlorophyll fluorescence and P700 are measured individually or simultaneously
Induction kinetic curves of two optical systems (including fast and slow phases)
Fast light curve and light response curve for two optical systems
Quenching analysis, dark relaxation analysis
Typical P700 curve measurements
Through synchronous measurements of chlorophyll fluorescence and P700, the electron transfer kinetics of the two optical systems, the size of the electron carrier library, the ring electron transfer kinetics surrounding PSI, etc.
Measure the transmembrane proton dynamic potential pmf and its components transmembrane proton gradient ΔpH and transmembrane potential Δψ by measuring P515/535 signal changes Δψ
The "P515 Flux" signal can reflect in situ the flow rate of coupled electrons and protons in the live sample in a steady state
Estimate the degree of reduction of NADP by measuring NADPH fluorescence
Estimate the transmembrane proton gradient by measuring 9-AA fluorescence ΔpH
Measurement parameters
PS II parameters: Fo, Fm, F, Fm', Fv/Fm, Y(II) i.e. △F/Fm', Fo', qP, qL, qN, NPQ, Y(NPQ), Y(NO) and ETR(II) etc.
PS I parameters: P700, Pm, Pm’, P700ox, Y(I), Y(ND), Y(NA) and ETR(I), etc.
P515/535 parameters: proton dynamic potential pmf, transmembrane proton gradient ΔpH, transmembrane potential Δψ, etc.
NADPH/9-AA parameters: NADP reduction degree, ΔpH, etc.
Other measurement parameters: Post-Illumination (drum), PQ-Pool (PQ library), etc.
Application areas
The functions equivalent to two PAM-101/ 102/ 103 can measure the activity of optical system II (modulating chlorophyll fluorescence) and optical system I (P700 absorption changes). It can be used in fields such as plant physiology, agronomics, forestry, horticulture, etc.Research on photosynthesis mechanism.
The expansion module P515/535 can measure the dynamic potential of transmembrane protons pmf and its components transmembrane proton gradient ΔpH and transmembrane potential Δψ, etc., and is a powerful tool for chlorophyll cycle and photoprotection research.
The extension module NADPH/9-AA can measure NADPH fluorescence and 9-AA fluorescence, and estimate the degree of reduction of NADP and the transmembrane proton gradient ΔpH.
Main technical parameters
Host: General-purpose (DUAL-C), can be connected to standard detectors, and can expand various modules such as P515/535, NADPH/9AA.
P700 Dual wavelength measurement light: LED, 830 nm and 875 nm
PSII fluorescence measurement light: LED, 460 nm (DUAL-DB) or 620 nm (DUAL-DR)
Red actinic light: LED array, 635 nm; maximum continuous light intensity 3000 μmol m-2yes-1
Blue photoelectric light: LED, 460 nm; maximum continuous light intensity 1100 μmol m-2yes-1
Single turnover saturated flash (ST): 200000 μmol m-2yes-1, 5~50 μs adjustable
Multi-turnover saturated flash (MT): 20000 μmol m-2yes-1, 1~1000 ms adjustable
Far Red Light: 720nm
Purchase Guide
1. Basic article on measuring leaves of higher plants
System composition: general-purpose host, standard version detection unit, data cable, workbench, software, etc.
Note: A red light detector (Dual-DR) and blue light detector (Dual-DB) can be selected for any of the following plants.
|
| Basic article on leaf measurement of higher plants |
2. Basic hanging sample measurement
System composition: general-purpose host, standard version detection unit, optical unit of suspension, data cable, workbench, software, etc.
Note: When measuring algae, please select the red light detector (Dual-DR) in cyanobacteria, and other algae can choose the blue light detector (Dual-DB)
|
|
| Basic hanging sample measurement model | |
|
|
|
| Synchronous measurement PSII (red) and PSI (blue) induction curve | Synchronous measurement PSII (red) and PSI (blue) light response curve | Typical P700 measurement curve |
|
|
|
| chlorophyll fluorescence signal when the saturation pulse is turned on (red) and P700 (blue) Signal changes | Fluorescence rapid kinetic curve measured in linear time | Fluorescence rapid kinetic curve measured in logarithmic time |
3. Other extension modules
Extended measurement 1: P515/535 module

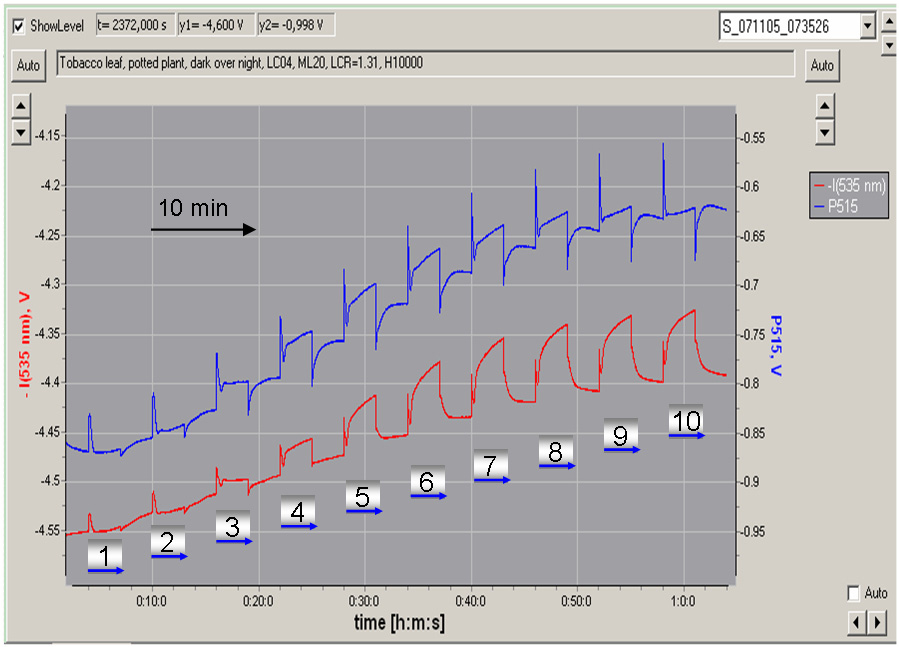

 | The P515/535 module is a measurement module designed by WALZ for the DUAL-PAM-100. It can be directly connected to the host of the DUAL-PAM-100 to measure the difference absorption of 550-510 nm and the signal changes of the wavelength of 535 nm.The P515/535 module can measure the transmembrane proton dynamic potential (pmf), transmembrane potential (Δψ), transmembrane proton gradient (ΔpH) and zeaxanthin (Zea) changes in photosynthetic organs.In addition, the module also provides a special "P515 Flux" operation mode that allows actinic light to turn on and off in light-dark pulse form (1/1 modulated light/dark), in situ measuring live samples in steady stateThe flow rate of coupled electrons and protons. | ||
|
|
| |
| By measuring the P515 changes, the two components of proton dynamic potential (pmf) are derived, Δψ and ΔpH | By measuring the 535 nm change, the proton dynamic potential (pmf) and its component ΔpH are derived. | Synchronously measure the light response curves of P515 and 535 nm signals | |
Extended Measurement Two: NADPH/9-AA Module
The NADPH/9-AA module is a measurement module designed by WALZ for the DUAL-PAM-100. It can directly connect the host of the DUAL-PAM-100 to measure NADPH fluorescence and 9-AA fluorescence.NADPH fluorescence can be used to estimate the degree of reduction of NADP, and 9-AA fluorescence is used to estimate the transmembrane proton gradient ΔpH.A major feature of this module is that it is used in conjunction with standard probes, which has achieved synchronous measurement of chlorophyll fluorescence and NADPH fluorescence for the first time in the world.
 |  | ||
| NADPH probe diagram | Synchronous measurement of NADPH fluorescence (blue) and chlorophyll fluorescence (red) |
Extended measurement 3: Used in conjunction with photosynthesis instrument GFS-3000
 |  |
| Designed for synchronous measurements between DUAL-PAM-100 and GFS-3000, it consists of a specially made leaf chamber (with temperature and PAR sensor), fan, light guide rod, electronic box and bracket.During synchronous measurements, the light source is provided entirely by the DUAL-PAM-100's measuring head, the gas exchange is detected by the GFS-3000's infrared analyzer, and the P700 and chlorophyll fluorescence is measured by the DUAL-PAM-100's detector. |
4. Other optional accessories
1. Dual-DPD: A separate photodiode detector unit, connected to the ED‑101US/MD through a light guide rod, is recommended when configuring the NADPH module.
2. Dual-DPM: A separate photomultiplier tube detector unit for dilute suspension fluorescence measurements and needs to be assembled on ED-101US/MD for use.The measuring head DUAL-DB or DUAL-DR must be configured simultaneously to excite modulated fluorescence.
3. ED-101US/T: The temperature control device, installed on ED-101US/MD, is a suspension liquid temperature control; it can be connected to an external circulating water bath to control the temperature,
4. US-SQS/WB: Spherical miniature optical quantum probe, which can be inserted into the sample cup to measure PAR; controlled by the host DUAL-C.
5. PHYTO-MS: Magnetic stirrer, connected to the bottom of the optical unit ED-101US/MD to stir the suspension.
6. DUAL-OP: Adapter for measuring small leaflets such as Arabidopsis, a specially made light-transmitting small hole adapter set, with diameters of 7 mm, 5 mm and 3 mm. It is very important for measuring small leaflets such as Arabidopsis!
Origin: WALZ, Germany
References
Data source: Photosynthesis Literature Endnote database, updated to January 2021, with more than 10,000 documents
Original data source: Google Scholar
1.B URL AC OT, A., ETA. (2022). "alternative photosynthesis pathways drive the algal co2-concentrating mechanism." nature.
2.for daughter, J., ETA. (2022). "targeted Introduction of heritage point mutations into T and plant mitochondrial genome." nature plants.
3.Capó-Bauçà, S., et al. (2022). "Correlative adaptation between Rubisco and CO2-concentrating mechanisms in seagrasses." Nature Plants 8(6): 706-716.
4.Kusama, S., et al. (2022). "Order-of-magnitude enhancement in photocurrent generation of Synechocystis sp. PCC 6803 by outer membrane deprivation." Nature communications 13(1): 3067.
5.Mallén-Ponce, M. J., et al. (2022). "Photosynthetic assimilation of CO2 regulates TOR activity." PNAS 119(2): e2115261119.
6.basso, l., ETA. (2022). "fla VOIron proteins enhance the rate of co2 assimilation in Arab ID op sis under fluctuating light intensity." plant physics.
7.B Audry, K., ETA. (2022). "A deny late S regulate Arab ID op sis PLA STI's ALT and IO red o heart activities through the binding fa CBS domain protein." plant physics.
8.to电影ADO, A., ETA. (2022). "directing starred in o bacterial photosynthesis in A cytochrome C oxide mutant using A heteroro LOGO US electron sink." plant physics.
9.Penzler, J.-F., et al. (2022). "Commonalities and specialties in photosynthesis functions of PROTON GRADIENT REGULATION5 variants in Arabidopsis." Plant Physiology.
10.Ho, T. T. H., et al. (2022). "Photosystem I light-harvesting proteins regulate photosynthesis electron transfer and hydrogen production." Plant Physiology 189(1): 329-343.
11.J i, D., ETA. (2022). "NADP+ supply adjust St and synchronization of photo system II NA rabid op sis chloroplasts." plant physics.
12.Fitzpatrick, D., ETA. (2022). "true oxygen reduction capacity during photosynthesis electron transfer int HY pull o IDS and intact leaves." plant physics.
13.Seydoux, C., et al. (2022). "Impaired photoprotection in Phaeodactylum tricornutum KEA3 mutants reveals the proton regulatory circuit of diagnosis light acclimation." New Phytologist n/a(n/a).
14.bet H Manneng, S. T. (2022). "light regulation of Z EA Xi'an Thin EP oxidase in plants."
15.Cecchin, M., et al. (2022). "Astaxanthin and eicosapentaenoic acid production by S4, a new mutant strain of Nannochloropsis gaditana." Microbial Cell Factoryes 21(1): 117.
16.Chen, Q., et al. (2022). "Arginine Increases Tolerance to Nitrogen Deficiency in Malus hupehensis via Alterations in Photosynthetic Capacity and Amino Acids Metabolism." Frontiers in Plant Science 12.
17.Chen, X., et al. (2022). "Effects of Cadmium on metabolism of photosynthesis pigment and photosynthesis system in Lactuca sativa L. revealed by physical and proteomics analysis." Scientia Horticulturae 305: 111371.
18.Choi, J., et al. (2022). "Effect of far-red and UV-B light on the growth and ginsenoside content of ginseng (Panax ginseng C. A. Meyer) sprouts aeroponically grown in plant factories." Horticulture, Environment, andBiotechnology 63(1): 77-87.
19.Dhokne, K., et al. (2022). "Change in the photochemical and structural organization of thylakoids from pea (Pisum sativum) under salt stress." Plant Physiology and Biochemistry.
20.Ermakova, M., et al. (2022). "Enhanced abundance and activity of the chloroplast ATP synthase in rice through the overexpression of the AtpD subunit." Journal of Experimental Botany.
twenty one.Espinoza-Corral, R. and P. K. Lundquist (2022). "The plastoglobule-localized protein AtABC1K6 is a Mn<sup>2+</sup>-dependent kinase necessary for timely transition to reproductive growth." Journal of Biological Chemistry.
twenty two.Fang, Y., et al. (2022). "Photoprotective energy quenching in the red alga Porphyridium purification occurs at the core antenna of the photosystem II but not at its reaction center." Journal of Biological Chemistry: 101783.
twenty three.Fattore, N., et al. (2022). "An increase in the membrane lipids recycling by PDAT overexpression stimulates the accumulation of triacylglycerol in Nannochloropsis gaditana." Journal of Biotechnology.
twenty four.Filaček, A., et al. (2022). "Pre-Acclimation to Elevated Temperature Stabilizes the Activity of Photosystem I in Wheat Plants Exposed to an Episode of Severe Heat Stress." Plants 11(5): 616.
25.GA O, P., ETA. (2022). "pale‐Greenleaf 1, A rice CPS RP54 protein, is essential fort and Assembly of T and psi‐LH CI super complex." plant direct 6(8): Oh 436.
26.Goto, M., et al. (2022). "Metabolic changes contributing to large biomass production in the Arabidopsis ppGpp-accumulating mutant under nitrogen deficiency." Planta 255(2): 48.
27.Guan, C., et al. (2022). "Physiological functional traits explain morphological variation of Ulva prolifera during the drifting of green tides." Ecology and evolution 12(1): e8504.
28.Hatano, J., et al. (2022). "NADPH production in dark stages is critical for cyanobacterial photocurrent generation: a study using mutants deficient in oxide pentose phosphor pathway." Photosynthesis Research.
29.Hu, L.-y., et al. (2022). "Overexpression of MdMIPS1 enhances drought tolerance and water-use efficiency in apple." Journal of Integrative Agriculture 21(7): 1968-1981.
30.HU, W., et al. (2022). "24-epibrassinolide improved chilled tomato photosynthesis performance by stabilizing electron transport chain and function of photosystem II." Biologia Plantarum 66: 178-187.
31.Hui, l., ETA. (2022). "over expression of rice mono gala CTO usage is low. The industrial chain glycerols are with you. SEO SMG D leads to enhanced salt tolerance in rice." agronomy 12(3): 568.
32.Iqbal, N., et al. (2022). "Fumonisin B1-Induced Oxidative Burst Perturbed Photosynthetic Activity and Affected Antioxidant Enzymatic Response in Tomato Plants in Ethylene-Dependent Manner." Journal of Plant Growth Regulation.
33.Jiao, X., et al. (2022). "Effects of rising VPD on the nutrient uptake, water status and photosynthesis system of tomato plants at different nitrogen applications under low temperature." Scientia Horticulturae 304: 111335.
34.jin, Y., ETA. (2022). "induction of poly PL OI DMA USP Run I folia and analysis of ITS salt tolerance." tree physics.
35.Ku SAMA, S., ETA. (2022). "dissection of respiratory and cyclic electron transport in syn echo C or above to improve the level. PCC 6803." journal of plant research.
36.Lazar, D., ETA. (2022). "light quality, oxygen IC photosynthesis and more." photosynthesis A.
37.Li, C., et al. (2022). "Chloroplast Thylakoidal Ascorbate Peroxidase, PtotAPX, Has Enhanced Resistance to Oxidative Stress in Populus tomentosa." International journal of molecular sciences 23(6): 3340.
38.Li, H.-G., et al. (2022). "The in vivo performance of a heat shock transcription factor from Populus euphratica, PeHSFA2, promises a prospective strategy to alleviate heat stress damage in poplar." Environmental and Experimental Botany:104940.
39.l i, M., ETA. (2022). "running title: ABA pathway meet SC bf pathway ATC mad C." horticulture research.
40.l i, M., ETA. (2022). "short-term suboptimal low temperature has short- and dragon-term effects on melon seedlings." SCI Ent Tia Hort ICU L Sudden AE 297: 110967.
41.l i, W.-he., ETA. (2022). "extension of thee ICA hypothesis for invasive CH RO membrane LA oh ah odor ATA." AC tao ecological A 114: 103803.
42.Li, X., et al. (2022). "Attachment of Ferredoxin: NADP+ Oxidoreductase to Phycobilisomes Is Required for Photoheterotrophic Growth of the Cyanobacterium Synechococcus sp. PCC 7002." 10(7): 1313.
43.l IE was deleted, D., ETA. (2022). "metabolic control of arg INI and or you thine level spaces the progression of leaf sensing." plant Phys IO stream.
44.Lin, S., et al. (2022). "Exogenous melatonin improved photosynthesis of photosystem II by reversible phosphorylation of thylakoid proteins in wheat under osmotic stress." Frontiers in Plant Science 13.
45.Liu, X., et al. (2022). "Formation of resting cells is accompanied with enrichment of ferritin in marine diagnosis Phaeodactylum tricornutum." Algal Research 61: 102567.
46.Liu, Z., et al. (2022). "Direct estimation of photosynthesis CO2 assimilation from solar-induced chloride fluorescence (SIF)." Remote Sensing of Environment 271: 112893.
47.Lyu, H. and D. Lazár (2022). "Analyzing the effect of ion binding to the membrane-surface on regulating the light-induced transthylakoid electric potential (ΔΨm)." 13.
48.Manjre, S., et al. (2022). "Evaluating the effect of seasonal conditions on metabolism and photosynthesis performance of Picochlorum sp. and its influence on biomass productivity." Bioresource Technology Reports: 101029.
49.Manoyan, J., et al. (2022). "Growth characteristics, biohydrogen production and photochemical activity of photosystems in green microalgae Parachlorella kessleri exposed to nitrogen deprivation." International Journal of Hydrogen Energy.
50.Manzoor, H., et al. (2022). "Methyl Jasmonate Alleviated the Adverse Effects of Cadmium Stress in Pea (Pisum sativum L.): A Nexus of Photosystem II Activity and Dynamics of Redox Balance." Frontiers in Plant Science 13.
51.Mao, H.-T., et al. (2022). "Temporal and spatial biomonitoring of atmosphere heavy metal pollution using moss bags in Xichang." Ecotoxicology and Environmental Safety 239: 113688.
52.Mehta, P., et al. (2022). "Synergistic integration of wastewaters from second generation ethanol plant for algal biofuel production: an industrially relevant option." 3 Biotech 12(1): 34.
53.Miller, N. T., et al. (2022). "Cyclic Electron Flow-Coupled Proton Pumping in Synechocystis sp. PCC6803 Is Dependent upon NADPH Oxidation by the Soluble Isoform of Ferredoxin:NADP-Oxidoreductase." Microorganisms 10(5): 855.
54.Mohammad A slam, S., ETA. (2022). "heat-induced photosynthesis response so FS a bio sediment ace AE revealed do not flash-induced fluorescence relaxation kinetics." 9.
55.Noguera, M. M., et al. (2022). "Involvement of glutamine synthetase 2 (GS2) amplification and overexpression in Amaranthus palmiri resistance to glufosinate." Planta 256(3): 57.
56.Qin, L., et al. (2022). "Physiological, Metabolic and Transcriptional Responses of Basil (Ocimum basilicum Linn. var. pilosum (Willd.) Benth.) to Heat Stress." Agronomy 12(6): 1434.
57.Rath, J. R., et al. (2022). "Temperature-induced reversible changes in photosynthesis efficiency and organization of thylakoid membranes from pea (Pisum sativum)." Plant Physiology and Biochemistry 185: 144-154.
58.Ravi Kiran, B. and S. Venkata Mohan (2022). "Phycoremediation potential of Tetradesmus sp.SVMIICT4in treating dairy wastewaterusingFlat-Panel photobioreactor." Bioresource Technology 345: 126446.
59.Samanta, L., et al. (2022). "Differential catalase activity and tolerance to hydrogen peroxide in the filamentous cyanobacteria Nostoc punctiforme ATCC 29133 and Anabaena sp. PCC 7120." Archives of Microbiology 204(2): 121.
60.Schansker, G., et al. (2022). "Identification of Twelve Different Mineral Deficiencies in Hydroponically Grown Sunflower Plants on the Basis of Short Measurements of the Fluorescence and P700 Oxidation/Reduction Kinetics." Frontiers in Plant Science | 13.
61.Sharma, Y., et al. (2022). "Lead accumulation, translation, distribution and photosynthesis toxicity in Cyamopsis tetragonoloba." Soil and Sediment Contamination: An International Journal: 1-18.
62.Sheikhalipour, M., et al. (2022). "Melatonin and TiO2 NPs Application-Induced Changes in Growth, Photosynthesis, Antioxidant Enzymes Activities and Secondary Metabolites in Stevia (Stevia rebaudiana Bertoni) Under Drought Stress Conditions." Journal of Plant Growth Regulation.
63.Sheikhalipour, M., et al. (2022). "Exogenous melatonin increases salt tolerance in bitter melon by regulating ionic balance, antioxidant system and secondary metabolism-related genes." BMC Plant Biology 22(1): 380.
64.shi, Q., ETA. (2022). "photo respiration alleviates photo inhibition of photo system i under fluctuating light in tomato." plants 11(2): 195.
65.Solymosi, D., et al. (2022). "Nic oxide represses photosystem II and NDH-1 in the cyanobacterium Synechocystis sp. PCC 6803." Biochimica et Biophysica Acta (BBA) - Bioenergetics 1863(1): 148507.
66.Soni, S. K., et al. (2022). "Papaya Leaf Curl Virus (PaLCuV) Infection on Papaya (Carica papaya L.) Plants Alters Anatomical and Physiological Properties and Reduces Bioactive Components." Plants 11(5): 579.
67.Steen, C. J., et al. (2022). "Interplay between LHCSR proteins and state transitions governs the NPQ response in Chlamydomonas during light fluctuations." Plant, Cell
68.environment progress & sustainable energy.
69.Suganami, M., et al. (2022). "Expression of flavodiiron protein rescues defects in electron transport around PSI resulting from overproduction of Rubisco activated in rice." Journal of Experimental Botany.
70.Sun, H., et al. (2022). "The response of photosystem I to fluctuating light is influenced by leaf nitrogen content in tomato." Environmental and Experimental Botany 193: 104665.
71.Suslichenko, I. S., et al. (2022). "The noninvasive monitoring of the redox status of photosynthesis electron transport chains in Hibiscus rosa-sinensis and Tradescantia leaves." Plant Physiology and Biochemistry.
72.take U pool, K., ETA. (2022). "the ability of P700 oxidation in photo system i reflect chilling stress tolerance in cucumber." journal of plant research.
73.Vannoni, M., et al. (2022). "Resilience of a microphytobenthos community from the Severn Estuary, UK, to chlorination: A mesocosm approach." Marine pollution bulletin 176: 113443.
74.Wan, X., et al. (2022). "Synergistic toxicity to the toxigenic Microcystis and enhanced microcystin release exposed to polycyclic aromatic hydrocarbon mixtures." Toxicon 210: 49-57.
75.Wang, H., ETA. (2022). "photosynthesis under fluctuating light int and CAM plant vanilla Pra you folia." plant science 317: 111207.
76.Wu, F., et al. (2022). "Assembly of LHCA5 into PSI blue shifts the far-red fluorescence emission in higher plants." Biochemical and biophysical research communications 612: 77-83.
77.ξ A, H., ETA. (2022). "sex-specific physical responses of PO Prussian Cathay Ana to uranium stress." forests 13(7): 1123.
78.Yang, J., et al. (2022). "The ABA receptor gene MdPYL9 confers tolerance to drought stress in transgenic apple (Malus domestica)." Environmental and Experimental Botany 194: 104695.
79.Yanykin, D. V., et al. (2022). "Effect of Up-Converting Luminescent Nanoparticles with Increased Quantum Yield Incorporated into the Fluoropolymer Matrix on Solanum lycopersicum Growth." Agronomy 12(1): 108.
80.Y U is low in sodium, l., ETA. (2022). "influence of burning-induced electrical signal son photosynthesis in PE AC press be modified by soil water shortage." plants 11(4): 534.
81.Yudina, L., et al. (2022). "Ratio of Intensities of Blue and Red Light at Cultivation Influences Photosynthetic Light Reactions, Respiration, Growth, and Reflectance Indices in Lettuce." Biology 11(1): 60.
82.Zen G, Z.-l., ETA. (2022). "regulation of leaf angle protects photo system i under fluctuating light in tobacco young leaves." cells 11(2): 252.
83.Zhang, X., et al. (2022). "Biphasic effects of typical chlorinated organophosphorus flame retardants on Microcystis aeruginosa." Ecotoxicology and Environmental Safety 241: 113813.
84.Zhang, Y., et al. (2022). "Analysis of Lhcb gene family in rapide (Brassica napus L.) identifies a novel member "BnLhcb3.4" modulating cold tolerance." Environmental and Experimental Botany: 104848.
85.Zhang, Y., et al. (2022). "CfAPX, a cytosolic ascorbate peroxidase gene from Cryptomeria fortunei, confers tolerance to abiotic stress in transgenic Arabidopsis." Plant Physiology and Biochemistry.
86.Zhang, Z., et al. (2022). "Exogenous trehalose differently improves photosynthesis carbon assimilation capabilities in maize and wheat under heat stress." Journal of Plant Interactions 17(1): 361-370.
87.Zheng, B., et al. (2022). "Regular effect of imazethapyr on Arabidopsis thaliana growth and rhizosphere microbial community through multiple generations of culture." Plant and Soil.
88.Zhong, Y., et al. (2022). "Balancing Damage via Non-Photochemical Quenching, Phenolic Compounds and Photorespiration in Ulva prolifera Induced by Low-Dose and Short-Term UV-B Radiation." International journal of molecular sciences 23(5): 2693.
89.Zhu, Q., et al. (2022). "Effects of mutations of D1-R323, D1-N322, D1-D319, D1-H304 on the functioning of photosystem II in Thermosyncococcus vulcanus." Photosynthesis Research.
