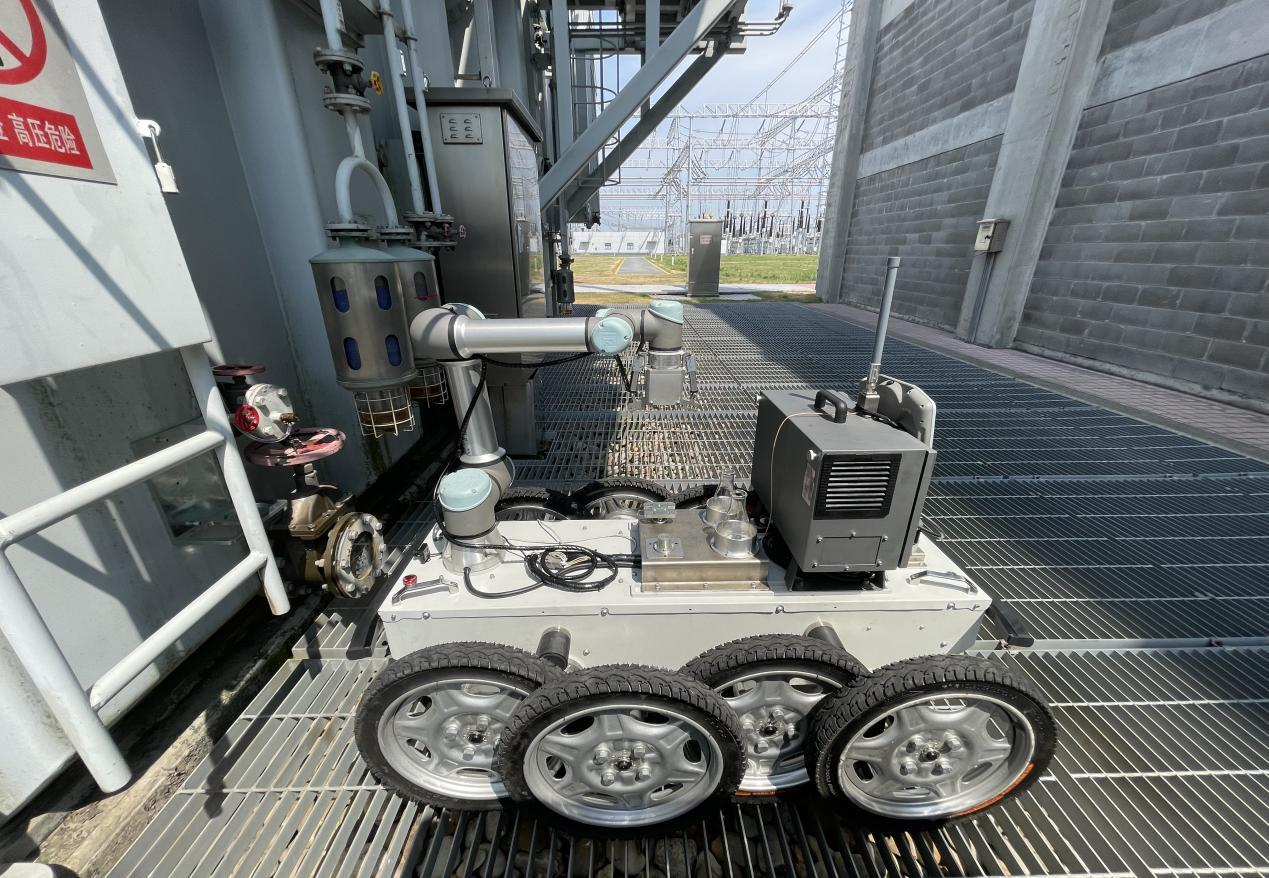

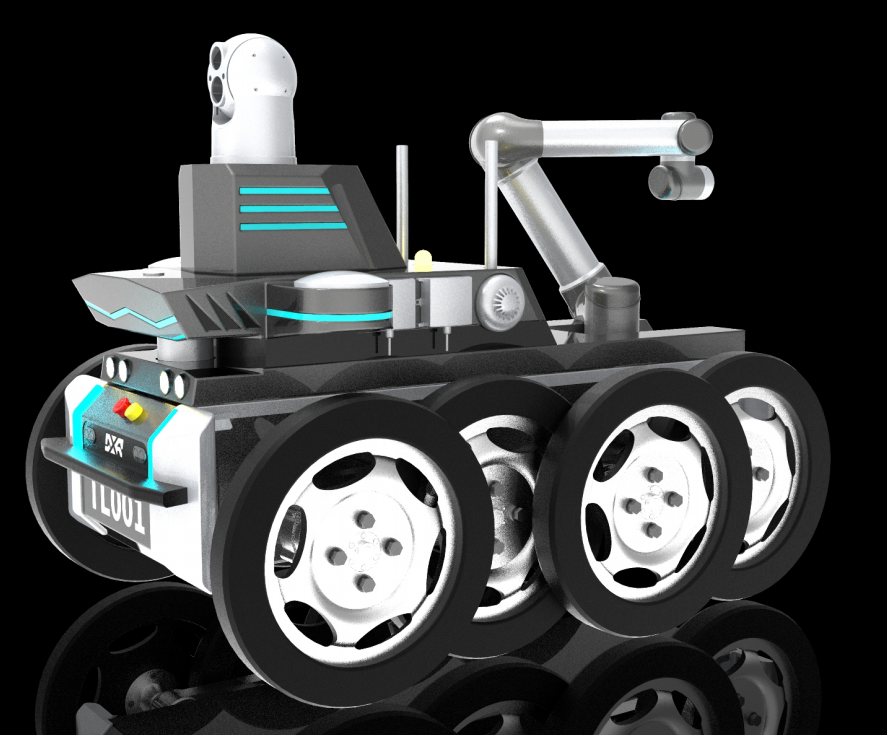

The collaborative operation and maintenance robot consists of a robot body, an industrial robot arm and a handheld intelligent remote control terminal.The main application field is the operation and maintenance field of ultra-high voltage power stations, providing operation and maintenance personnel with fast and accurate dynamics of substation equipment, and solving the problem of insufficient substation inspection quality due to differences in personnel professional level. Compared with traditional manual inspection operations,It can significantly reduce the cost of labor and time, solve the problem of insufficient "person-site comparison" to a large extent, and alleviate the increasingly prominent contradictions in the environment.
Technical parameters:
| Dimensions: <1400×800×1500mm | Curb weight: 300kg | Operating organization: All-terrain chassis planetary swing structure, Eight wheels and four drives | Running speed: 5km/h |
| Obstacle height: 350mm | Cross-tree width: 500mm | Climbing angle: 35° with load | Steering diameter: 0 |
| Control method: wireless remote control, autonomous operation | Battery life: 8h | Figure number transmission distance: 500m | Wading depth: 300mm |
| Load capacity: 100kg | Protection level: IP65 | Working radius of robotic arm: 850mm/33.5ins | Robotic arm payload: 5kg/11Ibs |
| Gloss-table function: horizontal 360°, vertical -90° ~90° | Visible light: Pixels 2560 × 1440, Focal length 5-160mm | Thermal imaging: Pixel 384×288, Focal length 7 to 25mm fixed focus option | |
| Optional: sound acquisition, handheld intelligent remote control terminal, autonomous obstacle avoidance, multiple gas detection, remote control, autonomous follow-up, warning lights, two-way intercom, robotic arms, bridge and other communication modules, charging piles, AI vision algorithm modules, handheld intelligent remote control terminal | |||
Product Advantages: ▪ The eight-wheel planetary wheel pendulum walking mechanism not only has excellent obstacle-retardation ability and flexibility, but also It can easily deal with the diverse unstructured terrain of the substation outdoors, such as pebbles and grasslands and steep slopes and hills; ▪ The robotic arm with AI visual guidance technology has excellent flexibility and can be operated remotely Perform various special tasks; ▪ Through AI vision, we can realize character recognition, instrument reading, and leak monitoring and other tasks; ▪ Automatic facial recognition and behavioral norm recognition, in case of suspicious situations Real-time early warning; ▪ The wheels are made of high temperature resistant and flame retardant rubber, which can operate safely in climates up to 50℃; ▪Capture live images through the gimbal and upload them in real time; ▪ The obstacle avoidance system automatically identifies obstacle distance, has high sensitivity and long monitoring distance; ▪ It has autonomous cruise and tracking functions, and can customize the target points to patrol independently; ▪ Excellent scalability, enabling rapid introduction of new functional components and secondary development; | Product features: ▪ Machine arm function: Through remote operation, the robot can complete various operations, such as grabbing Holding reagent bottles, twisting valves, opening and closing doors and other actions to help users complete more efficiently As troubleshooting and repair tasks. ▪ Environmental monitoring function: Flexible configuration of various environmental monitoring sensors, such as ambient temperature , humidity, gas concentration, etc., help users understand the environmental conditions in real time. ▪ Visual detection function: can perform routine inspections and meter transcription, and can be stored automatically Store the data for comparison analysis and detection. ▪ Autonomous Obstacle Avoidance Function: Obstacle Avoidance System can accurately identify obstacles in complex environments and automatically plan safe and efficient paths based on real-time data. ▪ Automatic charging function: During the robot completing daily inspection tasks or the power is below the threshold When the value is, its intelligent system will automatically navigate it to the preset charging pile for charging work. In order to provide charging support for robots to conduct 24/7 automatic inspections. |
 |  |  |
