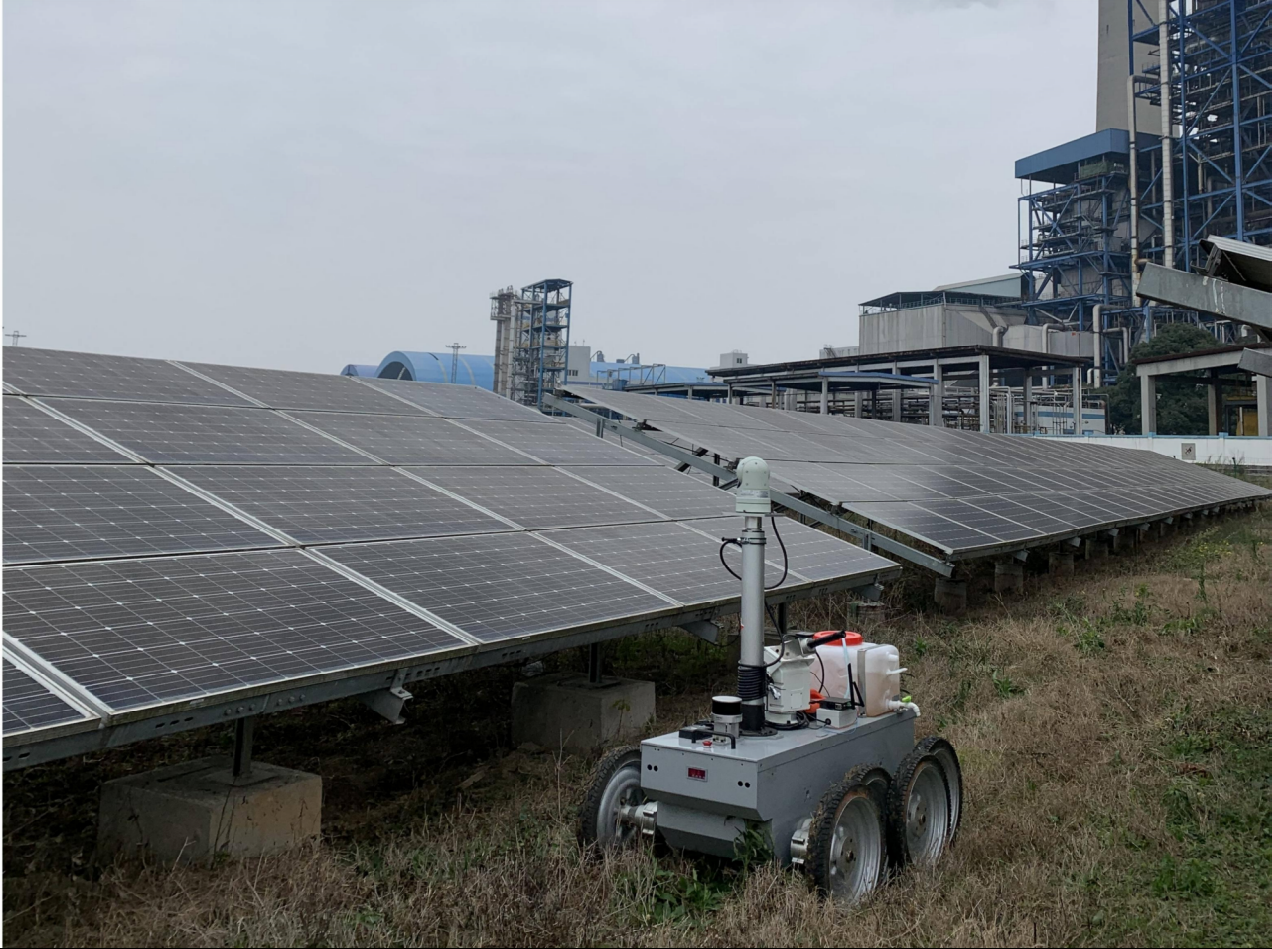

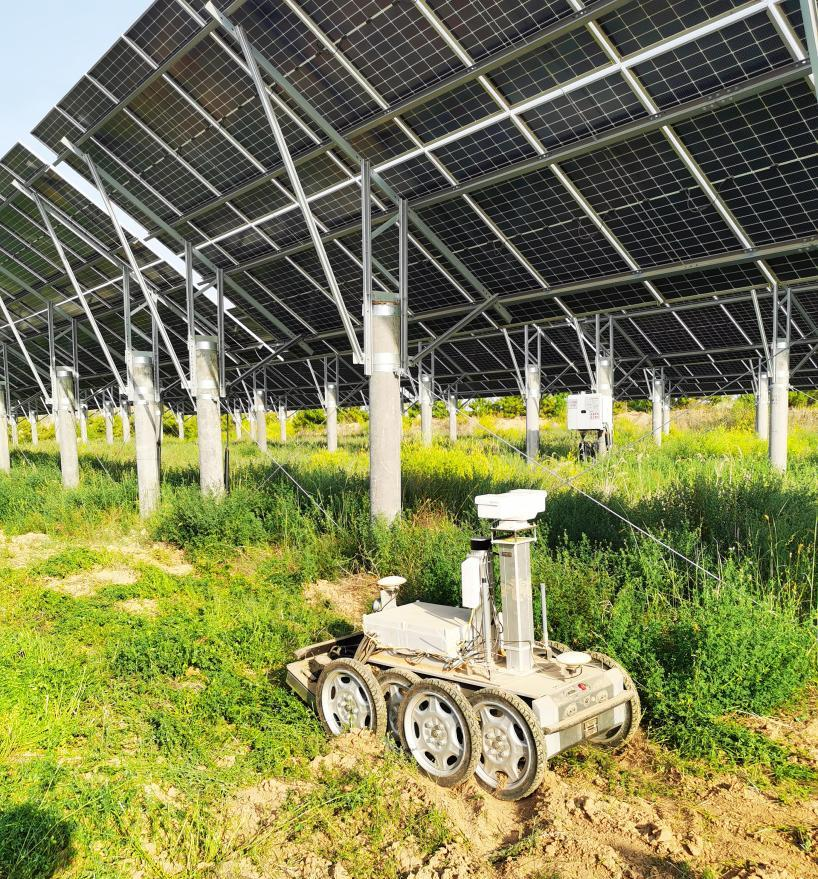

The photovoltaic operation and maintenance robot consists of a robot body, a lifting gimbal, a flip-flopable weeding module and a handheld intelligent remote control terminal.It is mainly used in the operation and maintenance field of centralized photovoltaic power stations, replacing operation and maintenance personnel to conduct repetitive tasks such as photovoltaic panel inspection and weeding.Adjust the height of the robot's gimbal by lifting the gimbal to meet the intelligent inspection needs of solar panels of different heights.The robot is equipped with a weeding module, which can effectively reduce the fire risk of photovoltaic stations and the probability of photovoltaic panels blocking the photovoltaic panels reducing the power generation efficiency of photovoltaic panels.Compared with traditional manual operation and maintenance, photovoltaic robots save a lot of labor costs, improve the efficiency of photovoltaic system, and significantly improve the mass production conversion efficiency of photovoltaic stations.
Dimensions: < 1400 × 900 × 1640mm | Curb weight: 400kg | Operating organization: All-terrain chassis planetary swing structure, Eight wheels and four drives | Running speed: 5km/h |
| Obstacle height: 200mm | Cross-tree width: 500mm | Climbing angle: 25° with load | Steering diameter: 0 |
| Control method: wireless remote control, autonomous operation | Battery life: 6h | Figure number transmission distance: 500m+ | Wading depth: 300mm |
| Load capacity: 100kg | Protection level: IP65 | Visible light: Pixels 2560 × 1440 Focal length 5-160mm | Thermal imaging: Pixel 384×288, Focal length 7 to 25mm fixed focus option |
| Gloss-table function: horizontal 360°, vertical -90° ~90° | Optional: autonomous obstacle avoidance, remote control, autonomous follow-up, weeding system, environmental monitoring, lifting pole, handheld intelligent remote control terminal, bridge and other communication modules, charging piles | ||
Product Advantages: ▪Used the eight-wheel planetary wheel pendulum walking mechanism, which has excellent obstacle crossing ability, Able to adapt to wild scenes such as sandy land and muddy land; ▪ It uses high temperature resistant and flame retardant rubber wheels, which can be gas up to 50℃ safe operation in the climate environment, excellent durability and safety; ▪ It adopts a low temperature resistant and waterproof design, especially suitable for photovoltaic stations -40℃ Climate conditions, can operate stably in extreme weather and ensure operation Reliability and sustainability; ▪ Can collect on-site images and upload them in real time to provide operation and maintenance personnel with timely Comprehensive information support to enhance the scientificity and accuracy of management decisions; | Product features: ▪ Weeding function: equipped with a weeding module, which can independently navigate to weed the designated area. ▪ Environmental monitoring function: It can be configured with various environmental monitoring sensors, supporting a variety of high-quality Accuracy detection enables all-round perception and detection of the environment. ▪ Visual detection function: dual vision with visible light + thermal imaging, supporting multiple faults Or environmental identification, including photovoltaic panel heat spot, diode damage, human-vehicle identification, etc. Ensure inspection accuracy and comprehensiveness. ▪ Autonomous obstacle avoidance function: accurately identify obstacles, intelligently plan safe and efficient paths, Ensure the efficient operation of the robot in complex environments. ▪ Automatic charging function: The robot completes daily inspection work or detects the power Low, can automatically navigate to the charging pile to complete the charging work, thus achieving all-weather Automatic inspection. |
 |  |  |
